Exterior Framed Brackets,
Corbels & Gable Ornaments

Unfinished and constructed from Honduras mahogany which is highly resistant to rot, moisture and cracking, these exterior brackets are mounted in framing to finish them off for mounting on porch posts, under eaves or as ornaments in 45 degree gables. The edges of the frames are detailed with an 1/8" routed bead.

This bracket style is featured in several of our door styles. Consider the width of your porch post and the amount of flat available for mounting when determining which size would be most suitable. We also offer recommendations.

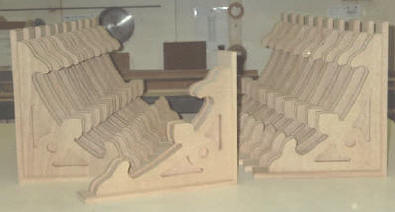

Triple layer framed brackets in Honduras mahogany

Our triple layer framed brackets can be mounted on porch posts or under eaves.

Single Layer Brackets with Cut-outs

FRAME SIZE BRACKET SIZE PRICE APPLICATION
2 X 13 X 13 ¾ X 11 X 11 $65 Satisfactory for 4 X 4 posts
2 X 13 X 17 ¾ X 11 X 15 $68 but inadequate for 6 X 6 posts
2 ½ X 13 X 13 1 ¼ X 11 X 11 $78 Good for 4 X 4 posts
2 ½ X 13 X 17 1 ¼ X 11 X 15 $83 and minimum for 6 X 6 posts
2 ½ X 17 X 17 1 ¼ X 14 ½ X 14 ½ $91 Best for 4 X 4 posts
2 ½ X 17 X 20 1 ¼ X 14 ½ X 17 ¾ $100 and satisfactory for 6 X 6 posts
2 ½ X 20 X 20 1 ¼ X 17 ¾ X 17 ¾ $119 Good for gable treatments

Triple Layer Brackets

Solid recessed middle layer sandwiched between outer layers with cut-outs.
FRAME SIZE BRACKET SIZE PRICE APPLICATION
3 ½ X 13 X 13 2 ¼ X 11 X 11 $127 Good for 6 X 6 posts
3 ½ X 13 X 17 2 ¼ X 11 X 15 $135
3 ½ X 17 X 17 2 ¼ X 14 ½ X 14 ½ $155 Best for 6 X 6 posts
3 ½ X 17 X 20 2 ¼ X 14 ½ X 17 ¾ $169
These brackets have three layers of 3/4"
FRAME SIZE BRACKET SIZE PRICE APPLICATION
4 ¼ X 13 X 13 3 X 11 X 11 $142 Good for 6 X 6 posts
4 ¼ X 13 X 17 3 X 11 X 15 $151 and good as corbels
4 ¼ X 12 X 18 3 X 10 ¼ X 16 $154 under eaves
4 ¼ X 17 X 17 3 X 14 ½ X 14 ½ $169 Excellent for 6 X 6 posts
4 ¼ X 17 X 20 3 X 14 ½ X 17 ¾ $183 and excellent as corbels
under eaves
These brackets have two 7/8" outer layers and a 1-1/4" middle layer
Notes: Prices exclude shipping and handling. Add $80 set up charge for orders less than 8 brackets.
Pricing effective May 2013. Subject to change without notice.

See Gable Ornaments and Corbels Installed
