Screen Door Hinges, Closers & Slide Bolts

Von Morris Screen Door Hinges

We have selected a high quality extruded solid brass 3 X 3  or 3 X 2-1/2 full mortise hinge for our screen and storm doors. Considerably heavier than the “Residential Grade” hinges typically found in most hardware stores, these hinges are individually machined from an extruded bar of solid brass. The removable hinge pin is machined from stainless steel and lightly knurled on one end to prevent it from falling through the barrel when the lower finial is not installed. This allows the installer to trial fit the screen door during hanging without the nuisance of repeatedly installing and removing the finials.

Von Morris 3 X 3 extruded brass hinge

Von Morris hinge with
flat finials
Click on Hinge for Close-Up

ball finials urn finials

Ball Finial

Urn Finial

Finishes We Stock

Note: We recommend 1-1/2 pair of hinges per screen-storm door or 2 pair for doors exceeding 38” wide or 90” tall


Door Closers

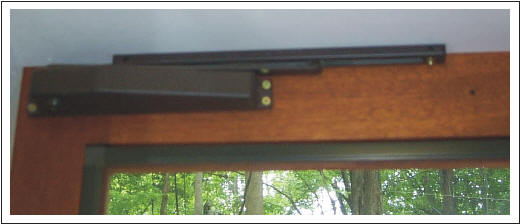

Sentinel Quietouch Residential Door Closer

Sentinel SN123HO
has a very low profile and is easy to install

This sleek, very low profile door closer is powerful, easy to install and has an automatic hold open feature. At 9-1/2” long x 1-1/4” wide x 2” deep, it will fit most any doorway and supports doors that weigh up to 100 lbs. It can be installed on the push or pull side of the door and is available in brown or white.




Stanley CD1768

Stanley CD1768 door closer

Stanley CD1768 Heavy Duty Pneumatic Closer
requires a minimum of 3" clearance between doors

If you have very large door, you may want to consider this closer.  The torsion spring is housed in a sealed clamshell base which is secured to a mounting bracket. It also has an automatic hold-open feature, an internal mechanism allowing the screen door to be propped open without having to reach up and move a sliding stop washer, a feature especially beneficial on very tall doors. Its dark bronze color matches our dark bronze screen and storm frames. This closer requires a minimum clearance of 3 inches between doors.


Von Morris Surface-Mounted Slide Bolts

For a double screen door application, we recommend two slide bolts to be mounted on the inside of the normally closed door, one at the top and one at the bottom of the lock stile. The top bolt will need to be longer on very tall doors in order to reach them without the aid of a stool or ladder. For example, if the highest you can reach is 80 inches and your door is 90 inches tall, you could select an 8-inch bolt for the bottom, but you would need at least a 12-inch bolt for the top. These beautifully styled slide bolts are available in 8, 12, 18 and 24 inch lengths.

Von Morris 2108 slide bolt

Von Morris 2108 8" Slide Bolt
